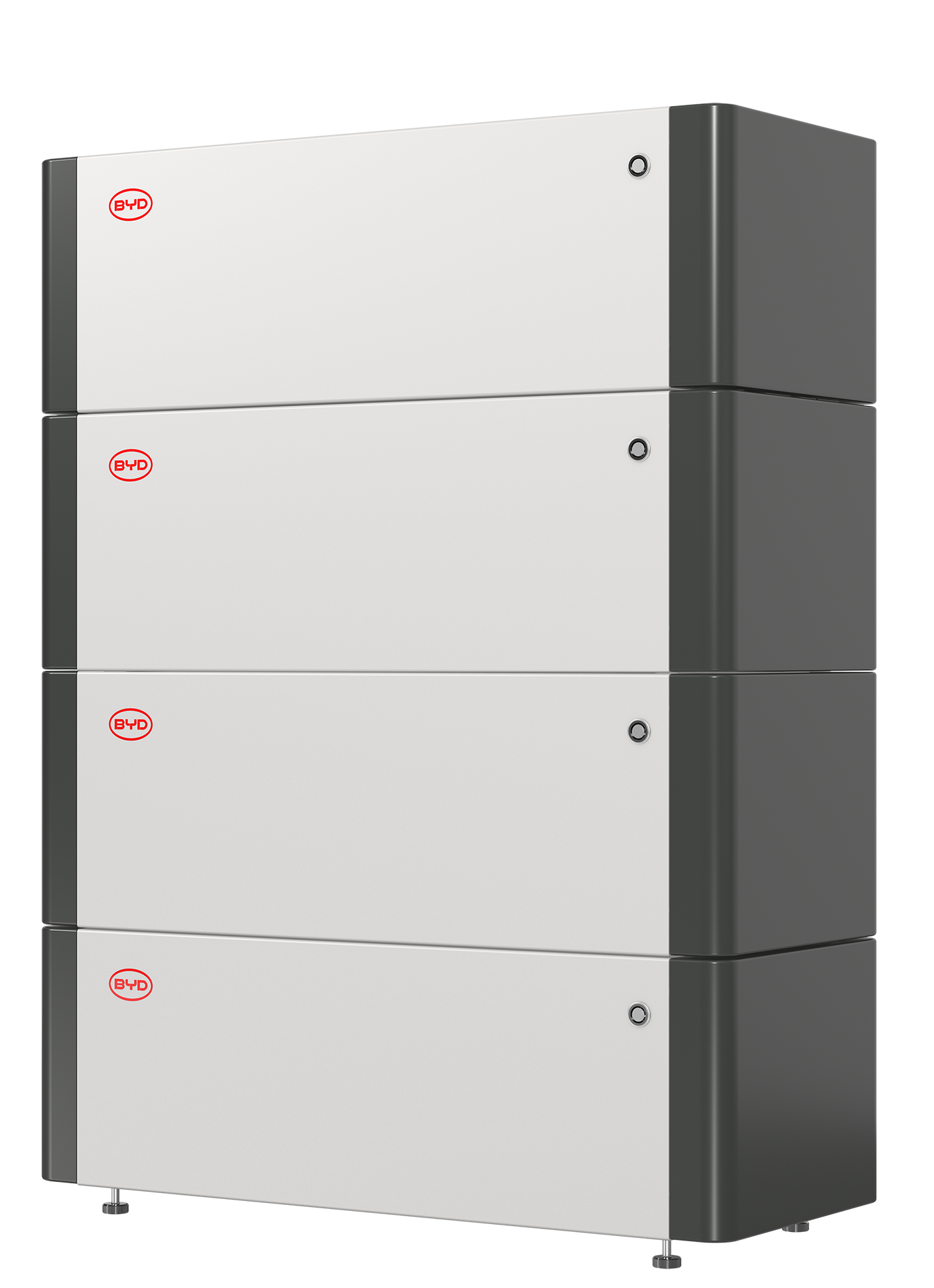

BYD Battery-Box L.V 5.0

The BYD Battery-Box L.V 5.0 is a 5.0kWh lithium-iron phosphate (LiFePO₄) battery designed for reliable and safe energy storage. Its modular, low-voltage design allows easy scalability to meet higher capacity needs, making it ideal for residential and small commercial applications. With high efficiency, long cycle life, and seamless inverter compatibility, it ensures dependable backup power and optimized solar self-consumption.

Specifications

• Model: BYD Battery-Box LV 5.0

• Battery Type: Lithium Iron Phosphate (LiFePO4)

• Usable Capacity: 5.12 kWh

• Nominal Voltage: 51.2V

• Operating Voltage Range: 40V – 57.6V

• Nominal Capacity: 100Ah

• Max Charge/Discharge Power: 5.0 kW

• Peak Power (2 min): 7.0 kW

• Round-Trip Efficiency: >95%

• Scalability: Up to 64 modules in parallel (max. 327 kWh)

• Cycle Life: >6000 cycles @ 90% DoD

• Communication Interfaces: CAN / RS485

• Protection Features: Overcharge, Over-discharge, Overcurrent, Short Circuit, Temperature Protection

• IP Rating: IP20 (Indoor/Outdoor use)

• Operating Temperature: 0°C to +50°C

• Storage Temperature: –20°C to +60°C

• Dimensions: 195 × 595 × 255 mm

• Weight: 42 kg

• Certification: CE, IEC 62619, UN38.3, TUV

• Warranty: 7 Years
